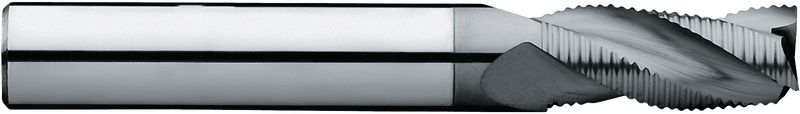

DIXI SC shoulder/ slot milling cutters
Material number 223200
Swiss Made, Made of solid hard metal, Cutinox coating, with cylindrical shank, Shaft tolerance h5, According to factory standard, Nominal size Ø 3 - 10 mm, Number of teeth 3, With protective chamfer, Long version, without center cut, Milling cutter with 30° helix angle, End mill cutting tolerance d12 (according to ISO 286 fit system)
Main application: Steel (ISO-P), Main application: Stainless steel (ISO M), Secondary application: Cast materials (ISO K), Secondary application: Non-ferrous metals (ISO N), Secondary application: Superalloys (ISO S), For shoulder milling, For slot milling, For pocket milling, For inclined plunging
Main application: Steel (ISO-P), Main application: Stainless steel (ISO M), Secondary application: Cast materials (ISO K), Secondary application: Non-ferrous metals (ISO N), Secondary application: Superalloys (ISO S), For shoulder milling, For slot milling, For pocket milling, For inclined plunging
Article Nr
Description
Change filters
Description
Change filters

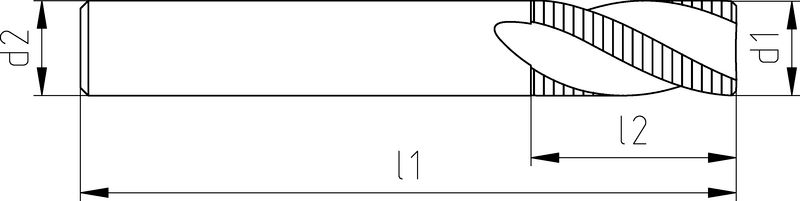

d1 [mm]
3 - 10
3 - 10
l2 [mm]
8 - 22
8 - 22
d2 [mm]
6 - 10
6 - 10
l1 [mm]
57 - 72
57 - 72
Netto EUR
plus delivery
plus delivery
product.table_header.scales
Netto EUR
plus delivery
plus delivery
Quantity
3
8
6
57
1 each
€98.76 Loading data. Please wait...
Loading...
4
10
6
57
1 each
€95.66 Loading data. Please wait...
Loading...
5
13
6
57
1 each
€108.32 Loading data. Please wait...
Loading...
6
13
8
63
1 each
€124.68 Loading data. Please wait...
Loading...
7
16
8
63
1 each
€135.11 Loading data. Please wait...
Loading...
8
16
8
63
1 each
€140.68 Loading data. Please wait...
Loading...
10
22
10
72
1 each
€147.88 Loading data. Please wait...
Loading...
