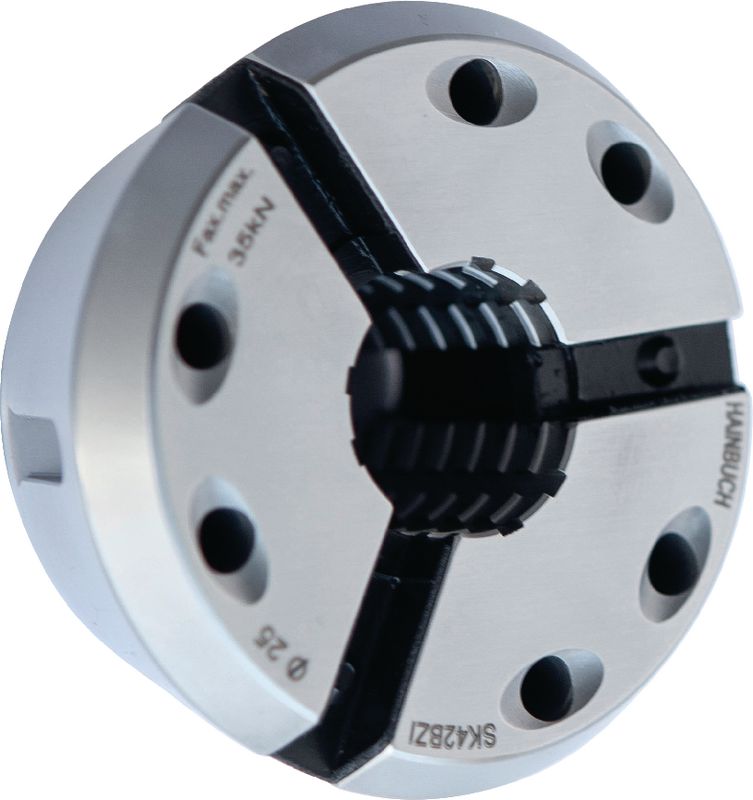

Front nose extension

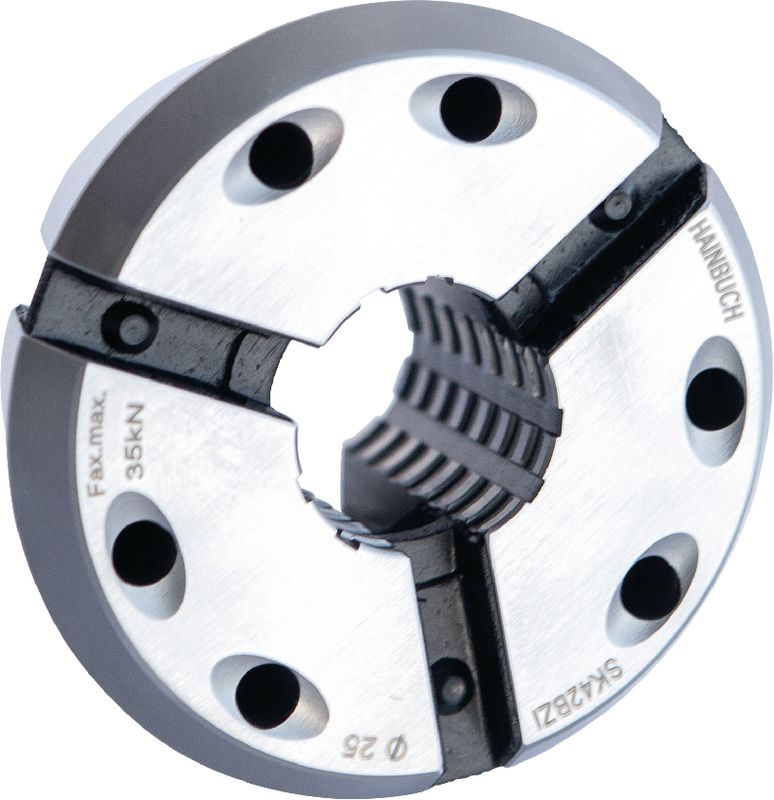

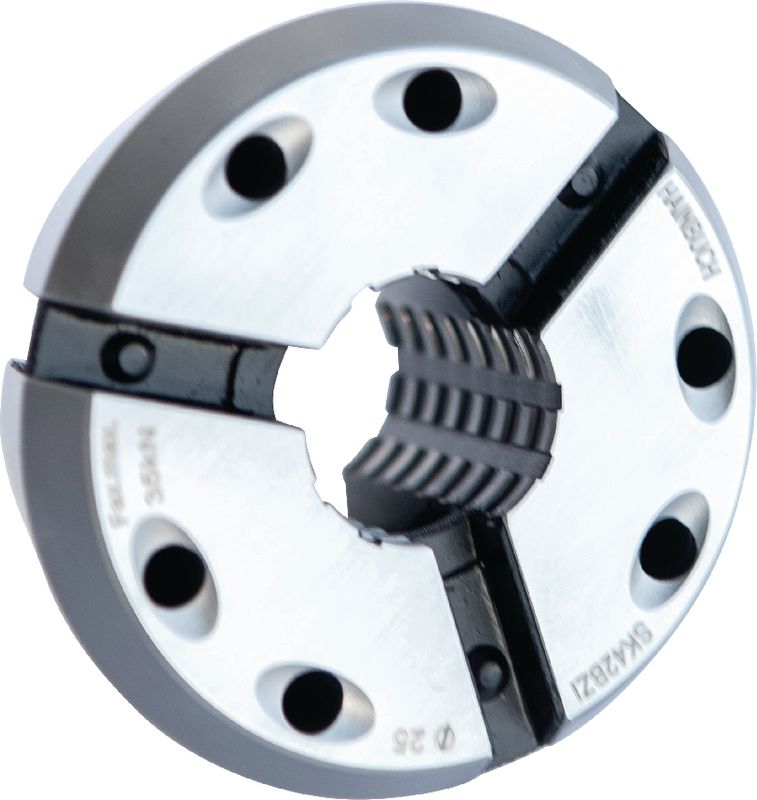

Serrated clamping bore
Total length 47 mm
The clamped length should be at least 11 mm.

Bore design:
4 mm...7 mm: smooth
8 mm...10 mm: radial grooves
11 mm...42 mm: axial and radial grooves

Usable with:
347730 Draw-in collett chuck Type H


Other dimensions available upon request.
